Conveyor chains seria C
PHC C2060X10FT
Conveyor chains seria C
PHC C2060X10FT

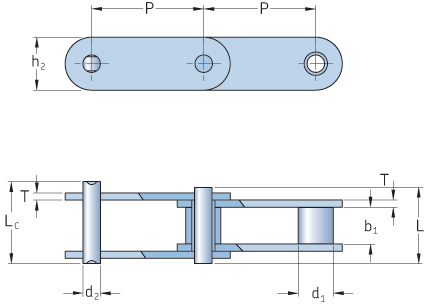

| Pitch P (mm) | 38.1 |
| Pitch P (in) | 1.5 |
| Roller diameter d1 max (mm) | 11.91 |
| Roller diameter d1 max (in) | 0.47 |
| Width between inner plates b1 max (mm) | 12.57 |
| Width between inner plates b1 max (in) | 0.49 |
| Pin diameter d2 max (mm) | 5.94 |
| Pin diameter d2 max (in) | 0.23 |
| Plate height h2 max (mm) | 18 |
| Plate height h2 max (in) | 0.71 |
| Plate thickness T max (mm) | 2.42 |
| Plate thickness T max (in) | 0.1 |
| Weight (kg/m) | 1.12 |
| Weight (lbs/ft) | 0.75 |
