Chains
Leaf chains
PHC LL0866X5MTR
Leaf chains
PHC LL0866X5MTR

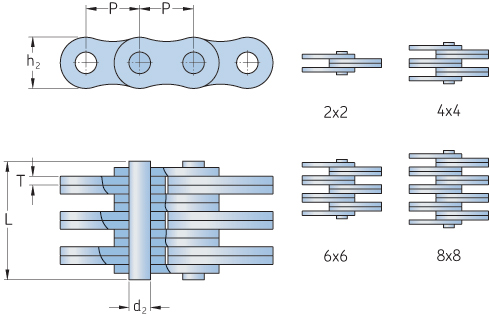

| Pitch P (mm) | 12.7 |
| Pitch P (in) | 0.5 |
| Pin diameter d2 max (mm) | 4.45 |
| Pin diameter d2 max (in) | 0.18 |
| Plate height h2 max (mm) | 10.6 |
| Plate height h2 max (in) | 0.42 |
| Plate thickness T max (mm) | 1.6 |
| Plate thickness T max (in) | 0.06 |
| Weight (kg/m) | 1.24 |
| Weight (lbs/ft) | 0.83 |
