Pulleys
Wedge Taper Bushed 2 Groove SPB
PHP 2SPB280TB
Wedge Taper Bushed 2 Groove SPB
PHP 2SPB280TB

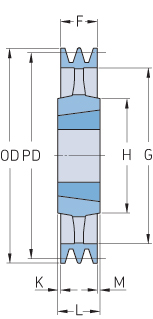

| Pitch diameter (mm) | 280 |
| Outside diameter (mm) | 287 |
| Pulley type | 4 |
| Bushing no. | 2517 |
| Min. bore (mm) | 16 |
| Max. bore (mm) | 60 |
| F (mm) | 44 |
| G (mm) | 237 |
| K (mm) | - |
| L (mm) | 45 |
| M (mm) | 1 |
| H (mm) | 120 |
| Weight (kg) | 10.1 |
