Pulleys
Classical timing Pilot bore H200
PHP 48H200RSB
Classical timing Pilot bore H200
PHP 48H200RSB
| No. of teeth | 48 |
| Pitch diameter (mm) | 194.03 |
| Pitch diameter (in) | 7.64 |
| Outside diameter (mm) | 192.66 |
| Outside diameter (in) | 7.59 |

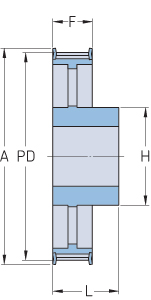

| Pulley type | 5F |
| Min. bore (mm) | 20 |
| Min. bore (in) | 0.79 |
| Max. bore (mm) | 54 |
| Max. bore (in) | 2.13 |
| Flange A (mm) | 200 |
| Flange A (in) | 7.87 |
| H | 90 |
| H (in) | 3.54 |
| F | 59.5 |
| F (in) | 2.34 |
| L | 75 |
| L (in) | 2.95 |
| Weight (kg) | 5.73 |
| Weight (lbs) | 12.63 |
