Pulleys - PHP 48L050TB
Pulleys
Classical timing Taper bushed L050

PHP 48L050TB
Print
Back
No. of teeth 48
Pitch diameter (mm) 145.53
Pitch diameter (in) 5.73
Outside diameter (mm) 144.77
Outside diameter (in) 5.7

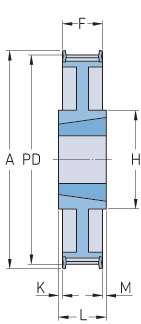

Pulley type 9F
Bushing no. 1610
Min. bore (mm) 14
Min. bore (in) 0.55
Max. bore (mm) 42
Max. bore (in) 1.65
Flange A (mm) 152
Flange A (in) 5.98
H 92
H (in) 3.62
F 19.1
F (in) 0.75
K -
K (in) -
L 25
L (in) 0.98
M 6
M (in) 0.24
Weight (kg) 1.8
Weight (lbs) 3.97
PHP 48L050TB
