Pulleys
Classical timing Taper bushed XH200
PHP 36XH200TB
Classical timing Taper bushed XH200
PHP 36XH200TB
| No. of teeth | 36 |
| Pitch diameter (mm) | 254.64 |
| Pitch diameter (in) | 10.03 |
| Outside diameter (mm) | 251.84 |
| Outside diameter (in) | 9.91 |

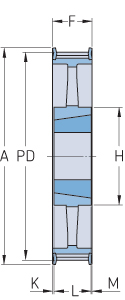

| Pulley type | 8F |
| Bushing no. | 2517 |
| Min. bore (mm) | 16 |
| Min. bore (in) | 0.63 |
| Max. bore (mm) | 60 |
| Max. bore (in) | 2.36 |
| Flange A (mm) | 267 |
| Flange A (in) | 10.51 |
| H | 134 |
| H (in) | 5.28 |
| F | 65.1 |
| F (in) | 2.56 |
| L | 45 |
| L (in) | 1.77 |
| Weight (kg) | 11.6 |
| Weight (lbs) | 25.57 |
