Pulleys
HiTD Pilot bore 5M
PHP 44-5M-09RSB
Back
HiTD Pilot bore 5M
PHP 44-5M-09RSB
No. of teeth | 44 |
Pitch diameter (mm) | 70.03 |
Outside diameter (mm) | 68.89 |

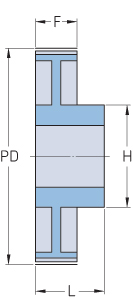

Pulley type | 2 |
Min. bore (mm) | 8 |
Max. bore (mm) | 26 |
Flange A (mm) | - |
H | 38 |
F | 14.5 |
L | 25.5 |
M | - |
Weight (kg) | 0.17 |
