FRC Couplings, Type B Pilot bored
PHE FRC90RSB
FRC Couplings, Type B Pilot bored
PHE FRC90RSB
| Size | 90 |
| Nominal torque (Nm) | 80 |
| Max torque (Nm) | 180 |
| Weight (kg) | 1 |

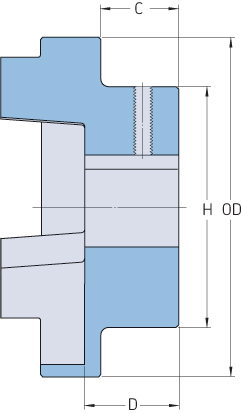

| OD (mm) | 85 |
| C (mm) | 19.5 |
| H (mm) | 70 |
| D (mm) | 23.5 |
Please note:
A complete FRC coupling consists of 2 hubs (2 RSB, or 1 RSB combined with either 1F or 1H, or 2F, or 2H, or 1F and 1H combined), 1 element (NR or FR) and in case of F or H hubs used adequate taper bushing(s).
