Single Universal Joints
PHE UJMA32
Single Universal Joints
PHE UJMA32

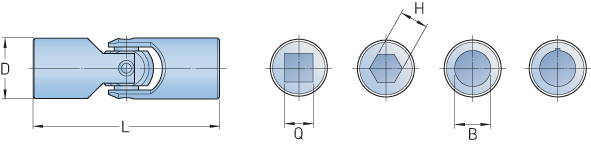

| Size | UJMA32 |
| L (mm) | 86 |
| L (in) | 3.39 |
| D (mm) | 32 |
| D (in) | 1.26 |
| Bore B (mm) | 16 |
| Bore B (in) | 0.63 |
| Bore Q (mm) | 16 |
| Bore Q (in) | 0.63 |
| Bore H (mm) | 16 |
| Bore H (in) | 0.63 |
| B Max Bore (mm) | 22 |
| B Max Bore (in) | 0.87 |
| B Max With Keyway (mm) | 18 |
| B Max With Keyway (in) | 0.71 |
| Static Breaking Torque (Nm) | 405 |
| Static Breaking Torque (lbft) | 298.71 |
For use on shafts up to 1800 rev/min and working angles up to 25°
(powered) or 35° (hand operated).
Standard is without bore.
Available on request with finish bore H7 - on request with keyway - (B) , hexagon bore (H) or square bore (Q).
