Couplings

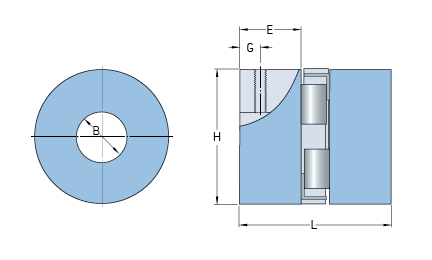

Hub (bored to size without keyway)
PHE L050-10MMP
Hub (bored to size without keyway)
PHE L050-10MMP
| Size | 50 |
| Position threaded hole G (mm) | 6.5 |
| Position threaded hole G (in) | 0.26 |
| Outer diameter H (mm) | 27.5 |
| Outer diameter H (in) | 1.08 |
| Maximum bore | 14 |
| Maximum bore (in) | - |
| Set screw | M6 |
| Length E (mm) | 16 |
| Length E (in) | 0.63 |
| Bore | 10 |
| Bore (in) | 0.39 |
Please note:
A complete coupling consists of 2 hubs and 1 element.
A complete coupling with spacer consists of 2 hubs, 2 nitrile wrap elements, 2 ring kits and 1 spacer.
A complete coupling consists of 2 hubs and 1 element.
A complete coupling with spacer consists of 2 hubs, 2 nitrile wrap elements, 2 ring kits and 1 spacer.
