Couplings
Gear coupling, single and double engagement, cover
PHE 20GCCOVER
Gear coupling, single and double engagement, cover
PHE 20GCCOVER
| Size | 20 GC |
| Power per 100 r/min (kW) | 44.7 |
| Power per 100 r/min (HP) | 59.92 |
| Rated torque (Nm) | 4270 |
| Rated torque (lbft) | 3149.39 |
| Speed Max. (r/min) | 5600 |
| Bore diameter Min. (mm) | 26 |
| Bore diameter Min. (in) | 1.02 |
| Bore diameter Max. (mm) | 78 |
| Bore diameter Max. (in) | 3.07 |

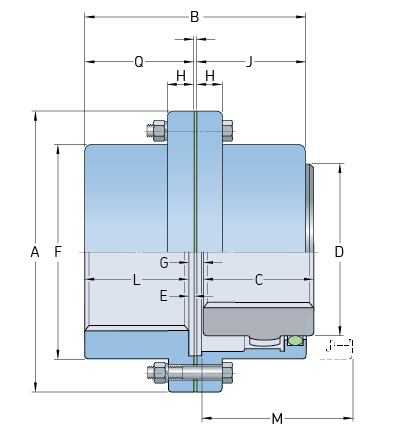

| A (mm) | 178 |
| A (in) | 7.01 |
| B (mm) | 127 |
| B (in) | 5 |
| C (mm) | 62 |
| C (in) | 2.44 |
| D (mm) | 105 |
| D (in) | 4.13 |
| F (mm) | 126 |
| F (in) | 4.96 |
| H (mm) | 19 |
| H (in) | 0.75 |
| J (mm) | 59 |
| J (in) | 2.32 |
| M (mm) | 77 |
| M (in) | 3.03 |
| Gap G Min. (mm) | 3 |
| Gap G Min. (in) | 0.12 |
| Lubricant mass (kg) | 0.12 |
| Lubricant mass (lbs) | 0.26 |
| Coupling mass without bore and min. DBSE (kg) | 16 |
| Coupling mass without bore and min. DBSE (lbs) | 35.27 |
