Couplings

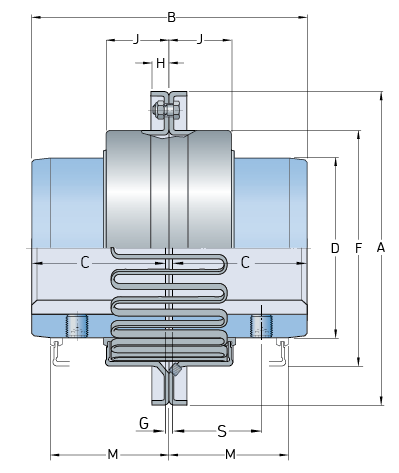

Grid coupling, Vertical split cover, Hub
PHE 1090TGRSB
Grid coupling, Vertical split cover, Hub
PHE 1090TGRSB
| Size | 1090 |
| Nominal torque (lbft) | 2751.11 |
| Nominal torque (Nm) | 3730 |
| Min. bore (mm) | 27 |
| Max speed (r/min) | 4000 |
| Min. bore (in) | 1.06 |
| Max. bore (mm) | 95 |
| Max. bore (in) | 3.74 |
| Weight (kg) | 10.4 |
| Weight (lbs) | 22.93 |
Please note:
A complete grid coupling, vertical spit cover, consists of 2 hubs (either PHE ****TGRSB or PHE ****TGX**MM), 1 vertical cover set (PHE ***TGVCOVER), and 1 grid (PHE ****TGGRID)
